Bottom Ball Pin

Brand: Mortch Motor
Product Code: MICF9DQV-056200-3000-M2

Product Viewed: 10

Availability: In Stock

Weight: 0.22kg

0 reviews / Write a review

US$17.40

Shipping To：

More Quotes

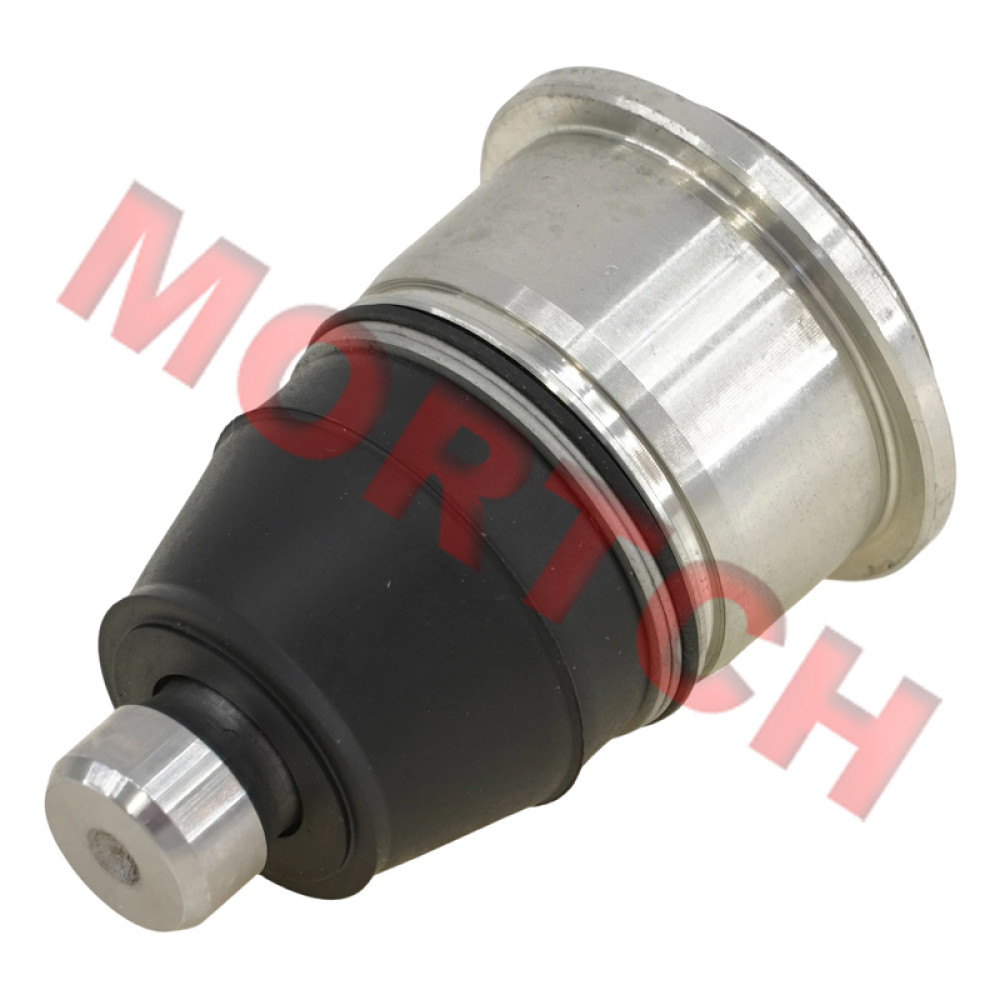

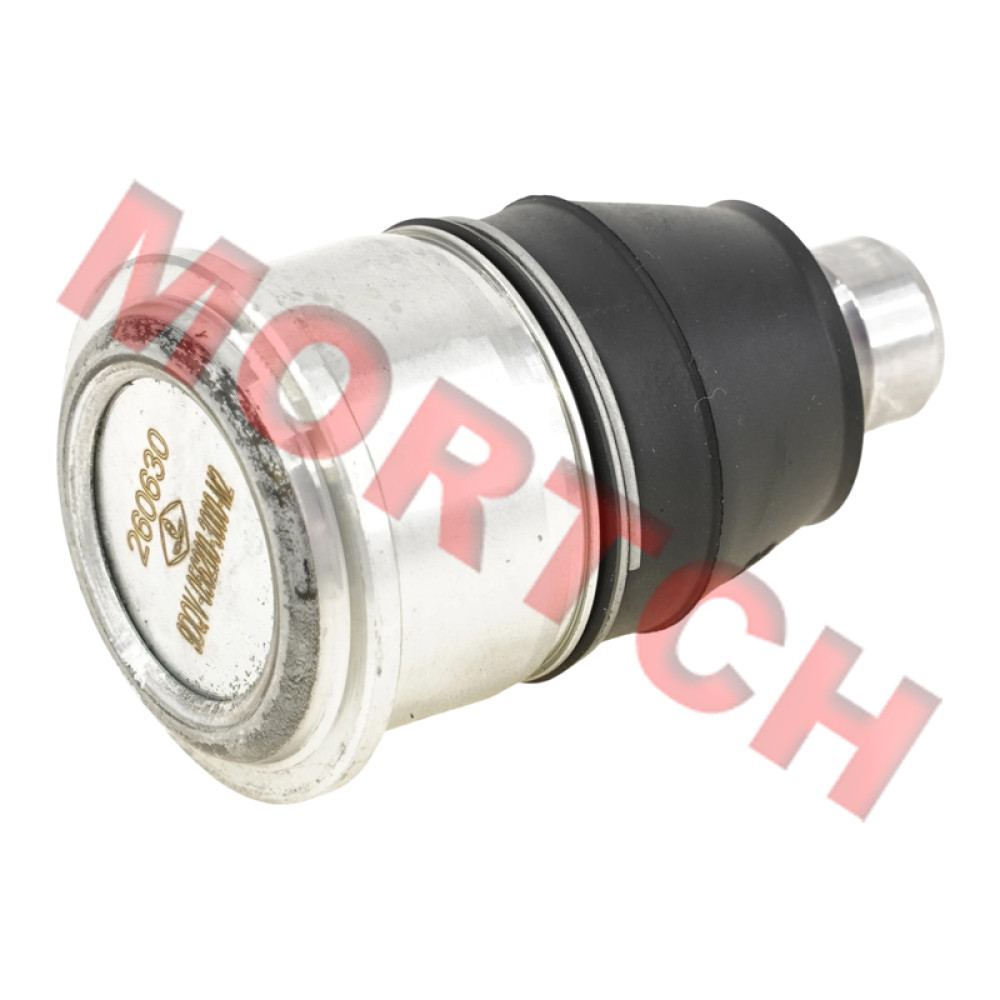

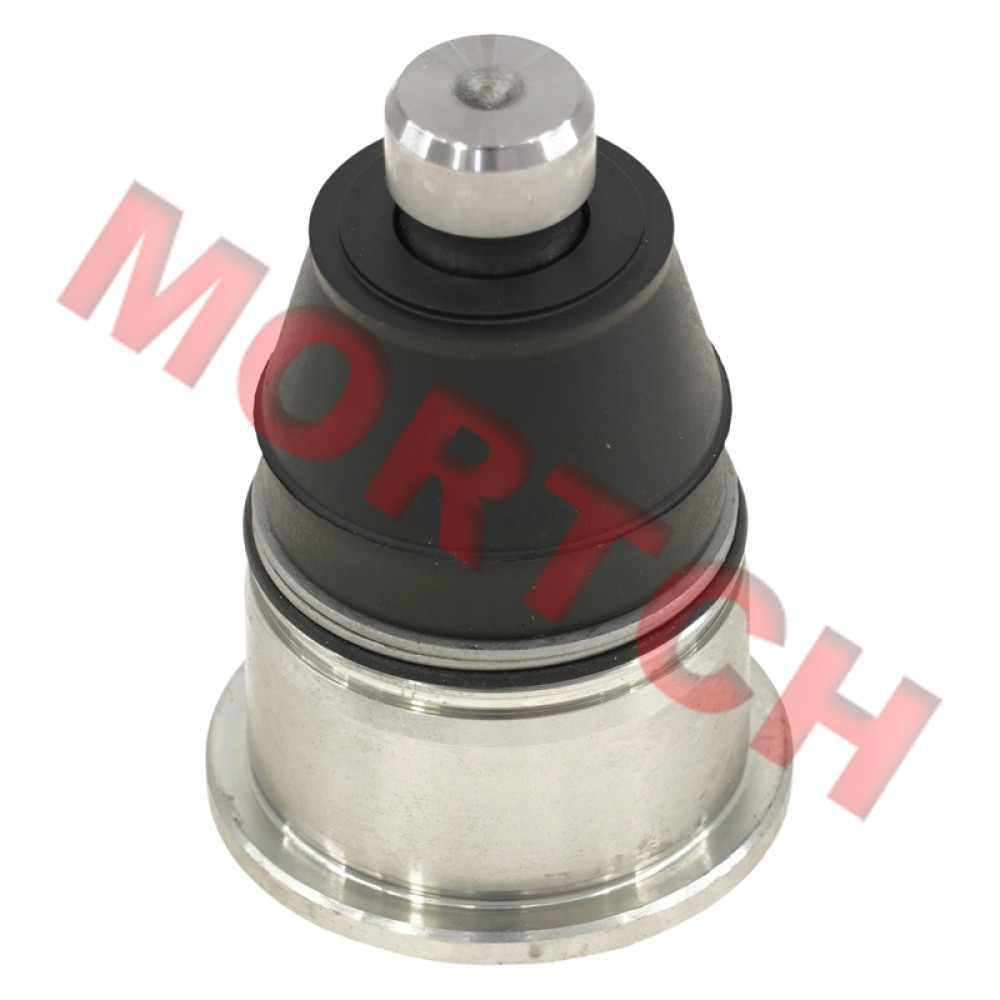

🔧 CFMoto Bottom Ball Pin Assembly

📦 Part Number: 9DQV-056200-3000-M2

⚙️ Bottom Ball Pin · Suspension Ball Joint · OEM Spec

📍 Installation: Lower control arm · Steering knuckle connection

✅ Single unit · Premium alloy steel · OEM specification · Fits multiple CFMoto ATV models

📋 Product Overview

This is a CFMoto OEM-spec bottom ball pin assembly, part number 9DQV-056200-3000-M2, sold as a single unit. This ball joint is a critical connecting component of the front suspension system, installed between the lower control arm and steering knuckle. It transfers steering and suspension loads, playing a vital role in vehicle handling stability, steering responsiveness, and driving safety.

Over time, the bottom ball joint may develop wear, play, or damage due to friction, impact, or fatigue — resulting in loose steering, abnormal tire wear, suspension noise, and in severe cases, ball joint separation that can cause serious accidents. Replacing it promptly with an OEM-spec ball pin assembly is essential to restore suspension performance and ensure driving safety.

✅ OEM Quality Assurance: Manufactured to CFMoto's original technical standards using premium alloy steel with precision machining. Dimensions and mounting interfaces are identical to genuine parts, ensuring a perfect replacement and reliable suspension connection performance.

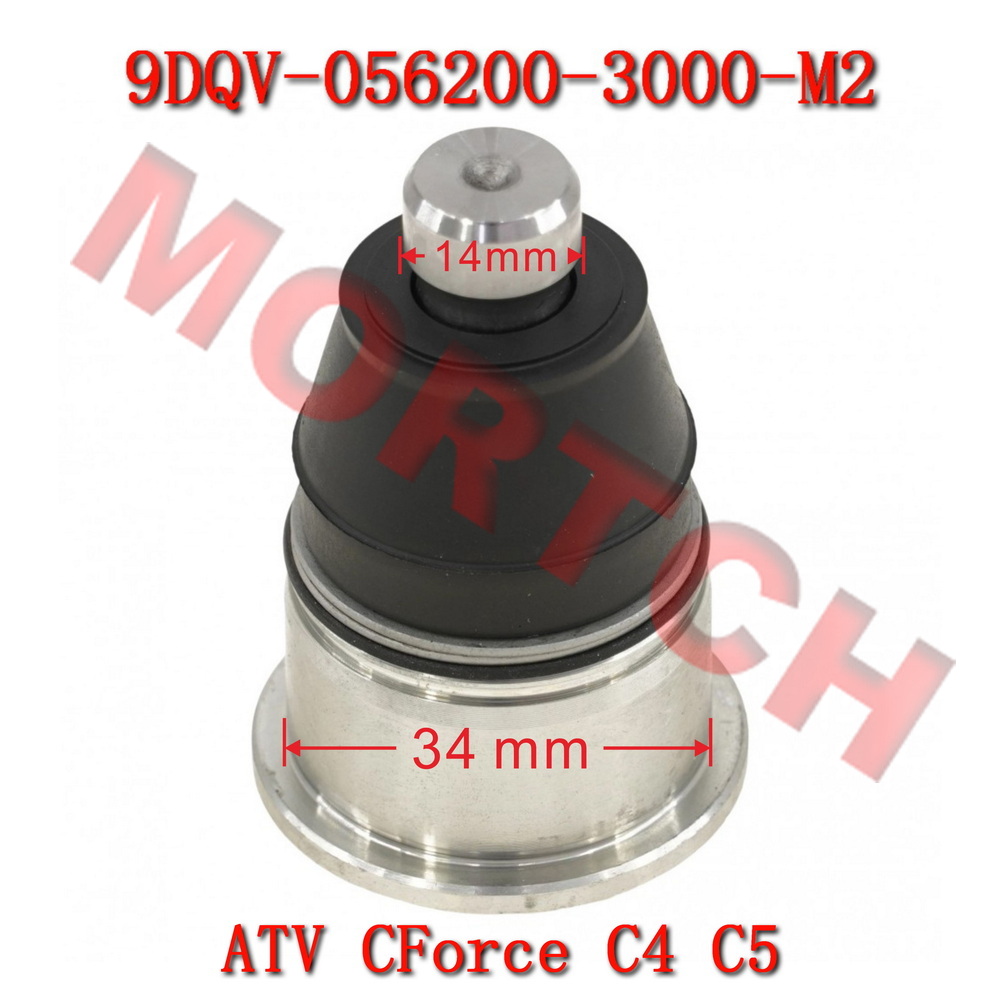

📐 Specifications

🔖 Part Number: 9DQV-056200-3000-M2

🏷️ Product Name: Bottom Ball Pin Assembly

📦 Package: Single unit

📍 Installation: Lower control arm · Steering knuckle

🧪 Material: Premium alloy steel

⚙️ Function: Suspension connection · Steering load bearing

🚗 Fitment

This bottom ball pin assembly (part number 9DQV-056200-3000-M2, single unit) fits the following CFMoto ATV models:

CF400ATR-3L(T3b) · CForce 450L (2022-2026)
CF400ATR-7L · CForce C4 Touring T3b (2026)
CF400AU-3LH · CForce 450L (2025-2026)
CF400AZ-7S · CForce C4 (2026)
CF500ATR-15L · GOES TERROX 550L T3b (2026)
CF500ATR-17L · GOES TERROX 500L EPS T3b (2026)
CF500ATR-9L(T3b) · CForce 520L (2022-2026)
CF500AU-9LH · CForce X5 520L (2025-2026)
CF500AZ-17S · CForce C5 (2026)

📌 Fitment Note: This bottom ball pin assembly is designed for the front suspension lower control arm connection on the listed CFMoto ATV models. Single unit. If your specific model is not listed, please contact us with your VIN to confirm compatibility.

⚙️ Features

✅ OEM Specification: Manufactured to CFMoto's original technical standards. Dimensions and mounting interfaces are identical to genuine parts.
🛡️ Premium Alloy Steel: Made from high-strength alloy steel with heat treatment and precision machining for wear resistance and impact strength.
🔧 Precision Machining: Precision-ground ball head ensures smooth articulation and perfect fitment with the steering knuckle.
💪 Reliable Load Bearing: Effectively handles suspension and steering loads for stable handling and safety.
🔄 Direct Replacement: Can be used to directly replace worn, loose, or damaged original ball joints.

✅ Typical signs that the bottom ball pin assembly needs replacement:
• Loose steering, excessive play, or poor self-centering.
• "Clunking" noises from the front suspension, especially on rough roads.
• Abnormal tire wear (uneven wear patterns).
• When the vehicle is lifted, shaking the wheel reveals excessive play.
• Ball joint dust boot is cracked, leaking grease, or ball head is corroded.
If any of these signs appear, please inspect and replace the bottom ball pin assembly promptly to prevent safety hazards.

✅ Installation Tips:
1. Confirm the ball pin part number is 9DQV-056200-3000-M2 and matches your vehicle.
2. Raise and securely support the vehicle, then remove the front wheel.
3. Remove the nut securing the ball joint to the steering knuckle.
4. Use a proper ball joint separator tool to safely detach the ball joint.
5. Clean the mounting area and inspect the control arm and knuckle for damage.
6. Install the new ball pin assembly and torque the nut to specification.
7. Reinstall the wheel, lower the vehicle, and perform a wheel alignment.
Professional installation is recommended. A wheel alignment is essential after installation to ensure tire life and handling performance.

⚠️ Important Notice: This product is a CFMoto bottom ball pin assembly, part number 9DQV-056200-3000-M2, single unit. Fits the listed CFMoto ATV models. Minor variations may exist between production batches. If your specific model is not listed, please contact us with your VIN to confirm compatibility. Images are for reference only; actual product may differ slightly.
