Rear Brake Sintered Pad
- Brand: Mortch Motor
- Product Code: MISG-A02E11320002
- Product Viewed: 12
- Availability: In Stock
- Weight: 0.21kg
US$18.00
-
- 50 or more US$9.00
| Shipping To： |

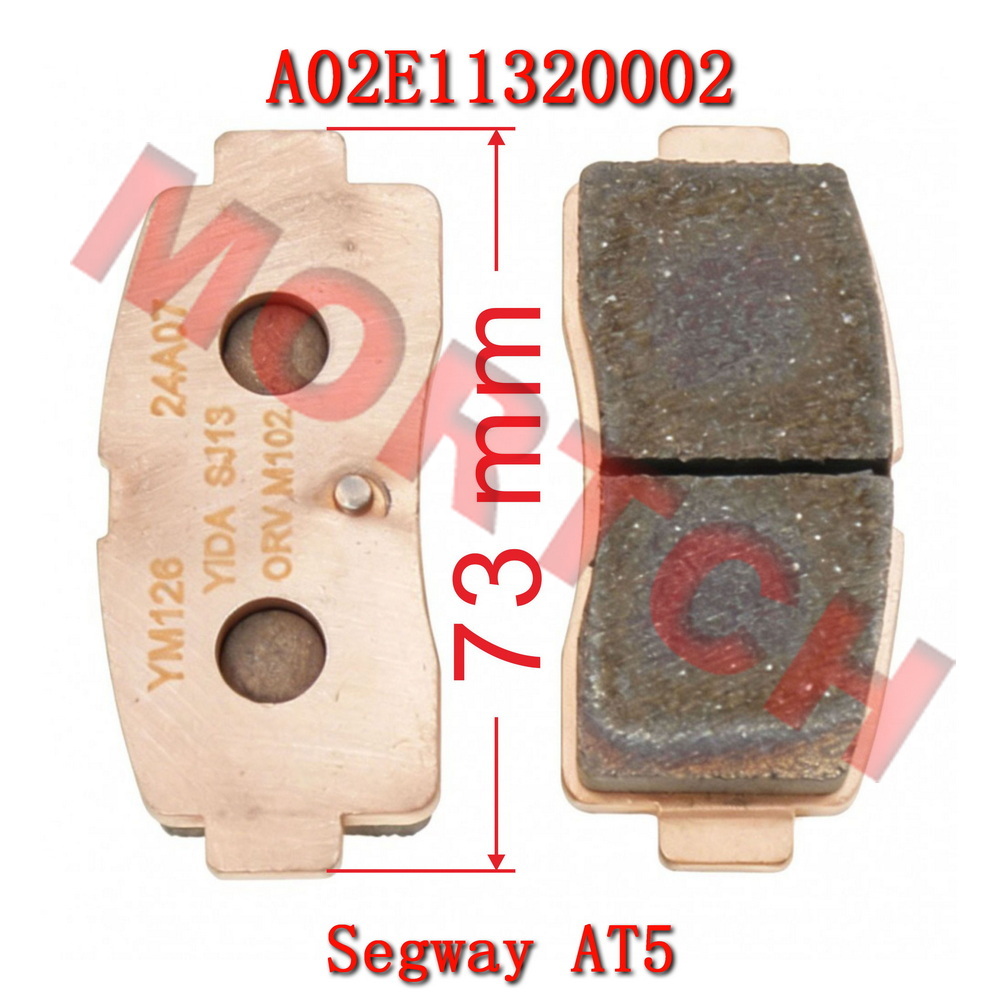

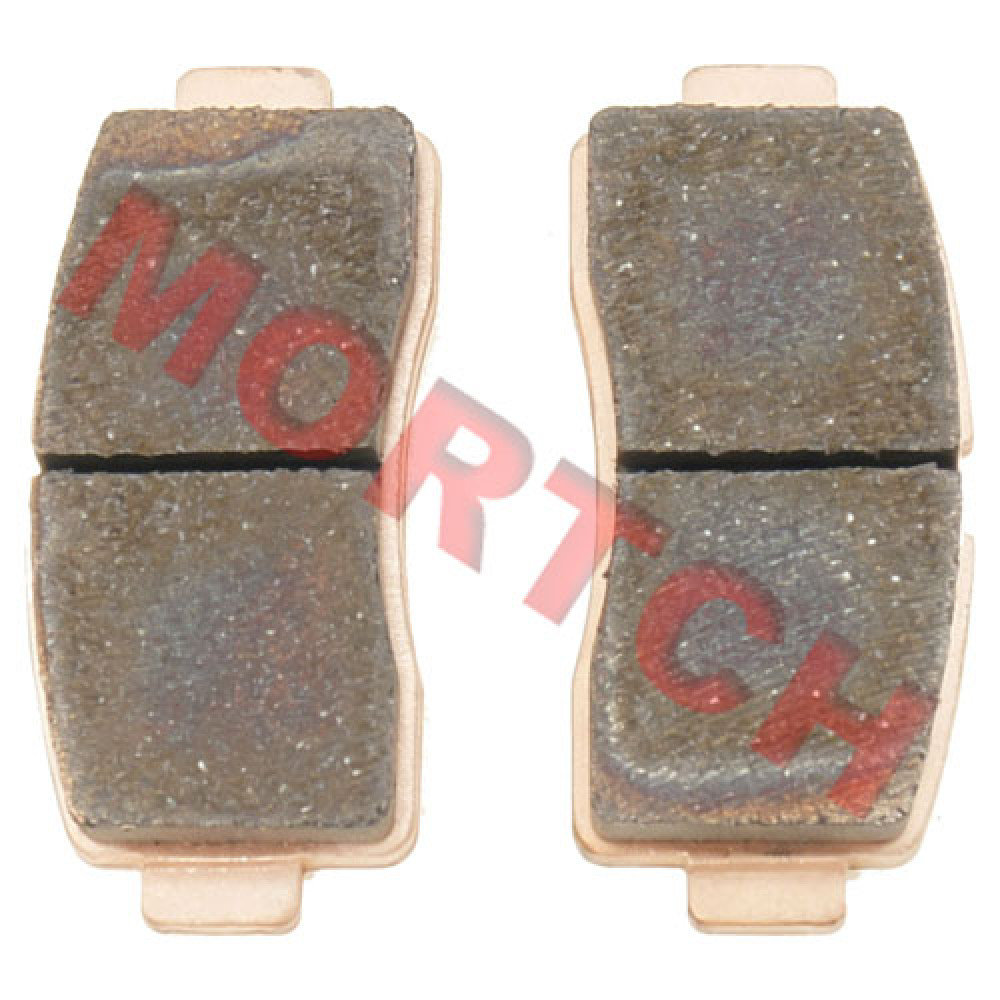

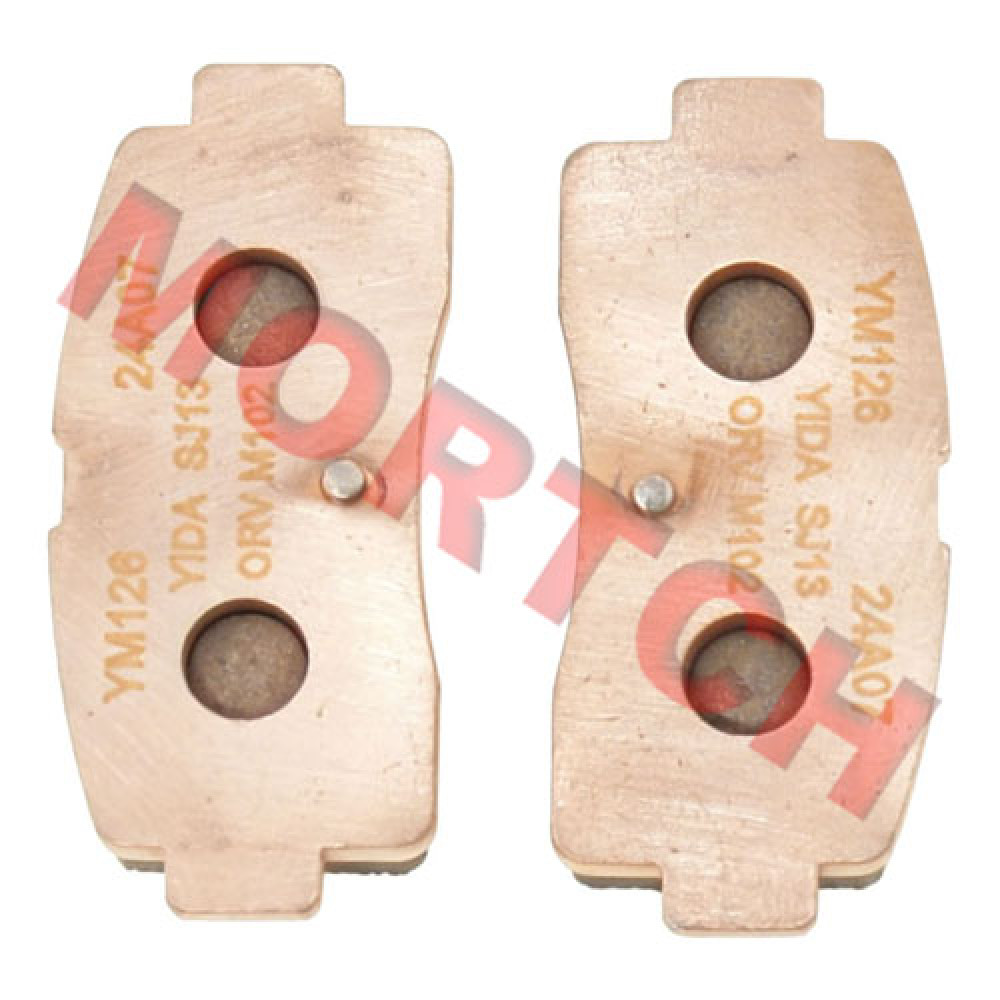

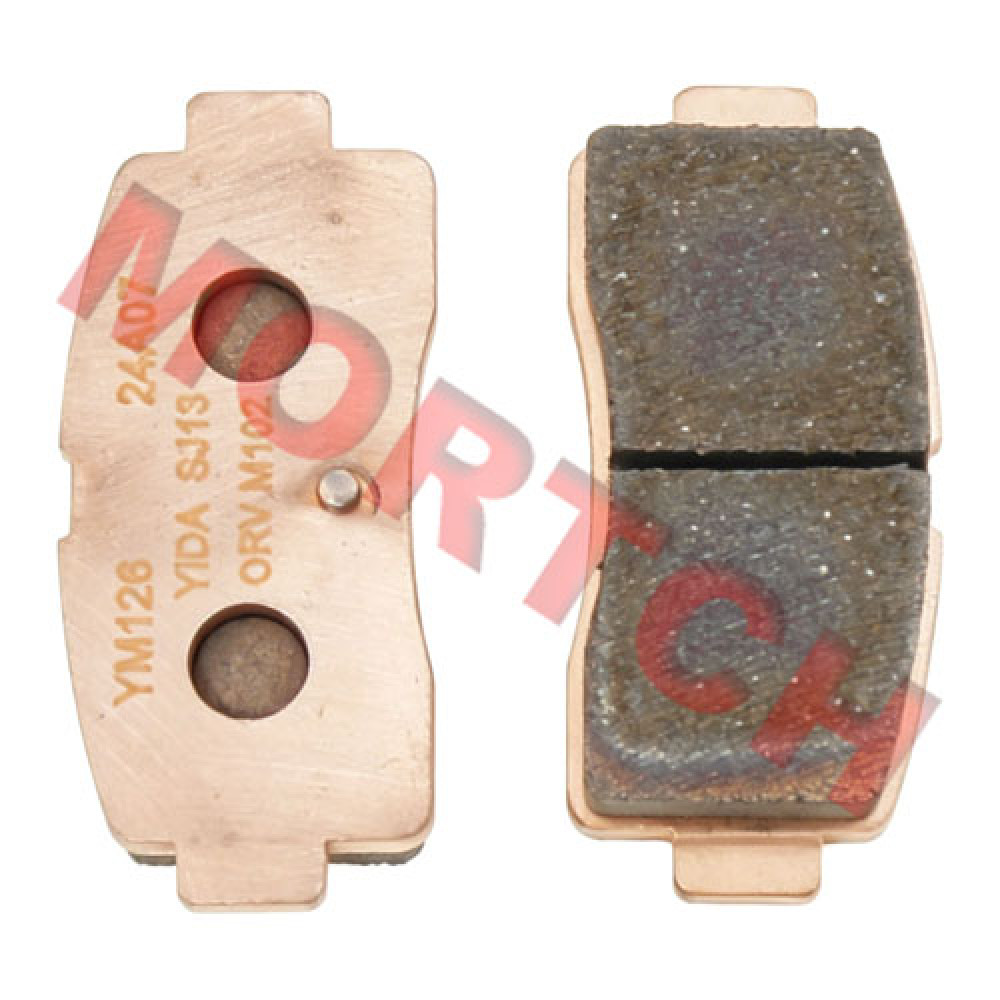

🔧 Segway Rear Brake Sintered Pad
📦 Part Number: A02E11320002
🛑 Sintered Metal Brake Pad · High Friction Coefficient · OEM Specification
📍 Installation Position: Rear Brake Calipers (Left & Right Wheels)
✅ Superior Heat Dissipation · Long Pad Life · Fits Segway AT5 T3b Series
This product is a Segway OEM-spec rear brake sintered pad, part number A02E11320002. Manufactured using sintered metal compound technology — metal particles fused under high pressure and temperature into a dense, high-performance friction material. Compared to organic or semi-metallic pads, sintered pads provide superior stopping power, excellent heat dissipation, and consistent brake feel even under extreme conditions (mud, water, repeated heavy braking).
Designed specifically for the rear brake calipers of Segway AT5 T3b series vehicles. Each set includes pads for both left or right rear wheels (2 pieces total, for 1 caliper).
✅ OEM Quality Assurance: Backing plate shape, pin holes, and wear indicator slots precisely match OEM dimensions. Backing plate made from high-grade steel to prevent deformation under high heat.
This rear sintered brake pad set (A02E11320002) fits the following Segway models:
- Segway AT5 S T3b
- Segway AT5 L T3b
📌 Fitment Note: Fits AT5 series T3b version (S and L models). Sintered pads are especially recommended for high-performance ATVs due to their heavier weight and frequent aggressive off-road use. If your specific model is not listed, please contact customer service with your VIN for confirmation.
- ✅ Direct OEM Replacement: Backing plate shape, pin holes, and pad thickness match OEM rear pads exactly. No modification required.
- 🛑 High Friction Coefficient (HH Rating): Provides strong, consistent braking force from cold to extreme temperatures. Excellent initial bite.
- 🔥 Superior Heat Dissipation: Metal matrix quickly transfers heat away from the rotor and pad surface, reducing brake fade during prolonged downhill or repeated hard stops.
- 💧 All-Weather Performance: Sintered pads are highly resistant to water and mud. Braking performance remains stable even when pads are wet or contaminated.
- ⏱️ Long Pad Life: Dense sintered material wears slower than organic or semi-metallic pads, especially in abrasive off-road conditions.
- 🔧 Gentle on Rotors: Properly formulated sintered compound provides excellent stopping power without excessive disc wear.
- 📢 Integrated Wear Indicator: Audible squealer tab alerts rider when pad thickness reaches minimum safe level.
• Squealing or grinding noise when applying rear brake (wear indicator or metal-to-metal contact).
• Reduced braking power or spongy pedal/lever feel (after bleeding brakes).
• Visible pad thickness less than 2–3 mm.
• Brake pedal/lever pulsation or vehicle vibration (uneven pad wear or warped rotor — inspect both).
• Dark, glazed appearance on pad surface (caused by overheating, reduces friction).
Replace rear pads immediately if any of these conditions appear. Worn pads compromise safety and can damage brake rotors.
Organic (resin) pads are quieter and softer but wear very quickly on high-performance ATVs, especially during aggressive driving, in mud, or on hilly terrain. Sintered pads provide superior stopping power, last 2–3x longer, and resist brake fade. For the AT5 series (designed for high performance and off-road use), sintered pads are the strongly recommended choice.
1. Always replace pads in sets (both rear wheels). Never replace only one side.
2. Clean brake caliper piston(s) and slide pins with brake cleaner before retracting pistons.
3. Use a proper brake piston tool or large pliers to slowly compress pistons back into the caliper. Monitor brake fluid reservoir level to avoid overflow.
4. Apply a thin layer of high-temperature brake grease to the back of pads and to slide pin contact points (avoid getting grease on friction material or rotor).
5. After installation, pump the brake pedal/lever several times until firm pressure returns before riding.
6. Bed-in new pads: perform 20–30 gentle stops from moderate speed to transfer an even layer of friction material onto the rotors. Avoid hard stops or prolonged dragging for the first 100 km.
Professional installation recommended if you are not experienced with brake systems.
🔹 Safety First: Properly functioning rear brakes are critical for vehicle safety. If you experience any unusual noise, vibration, or reduced braking after installation, inspect immediately. When in doubt, consult a qualified mechanic. 🔹
