Spline Sleeve
- Brand: Mortch Motor
- Product Code: MICF9CR6-103003
- Product Viewed: 12
- Availability: Pre-Order 1-2 Weeks🔔
- Weight: 0.02kg
US$1.80
| Shipping To： |

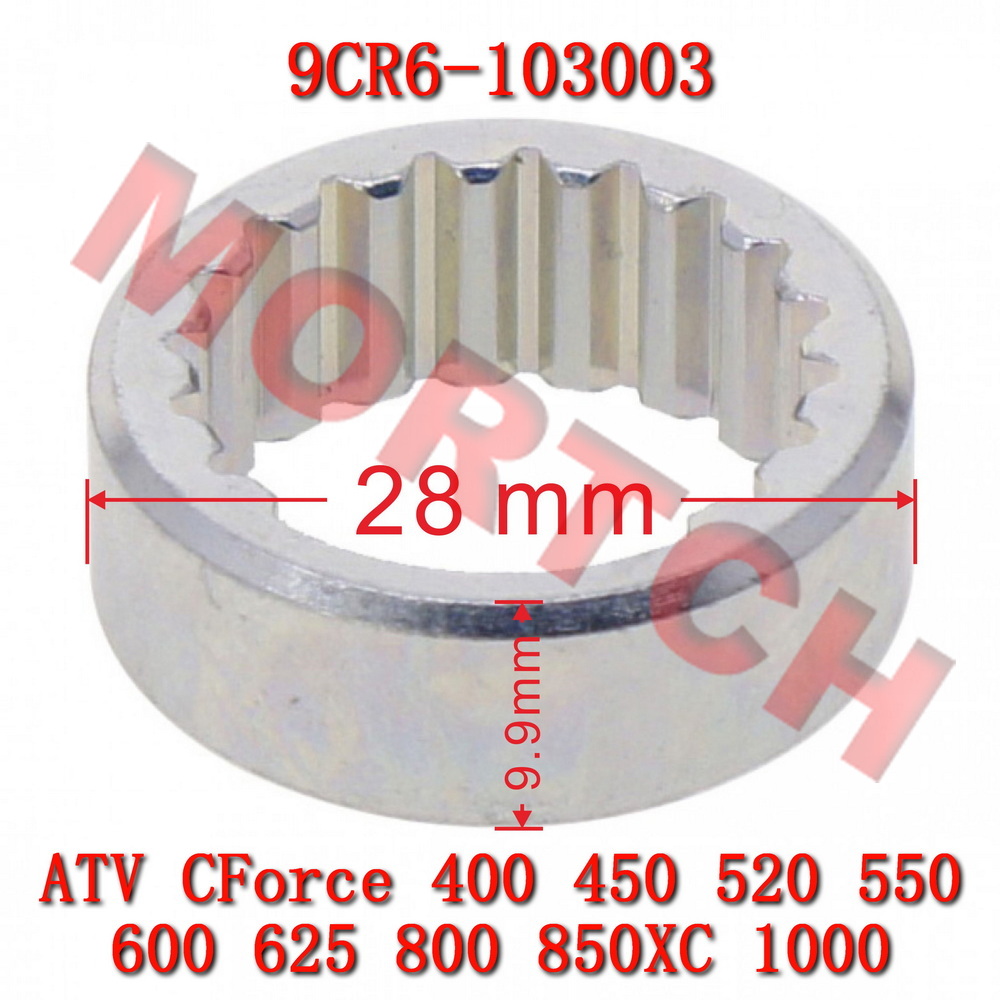

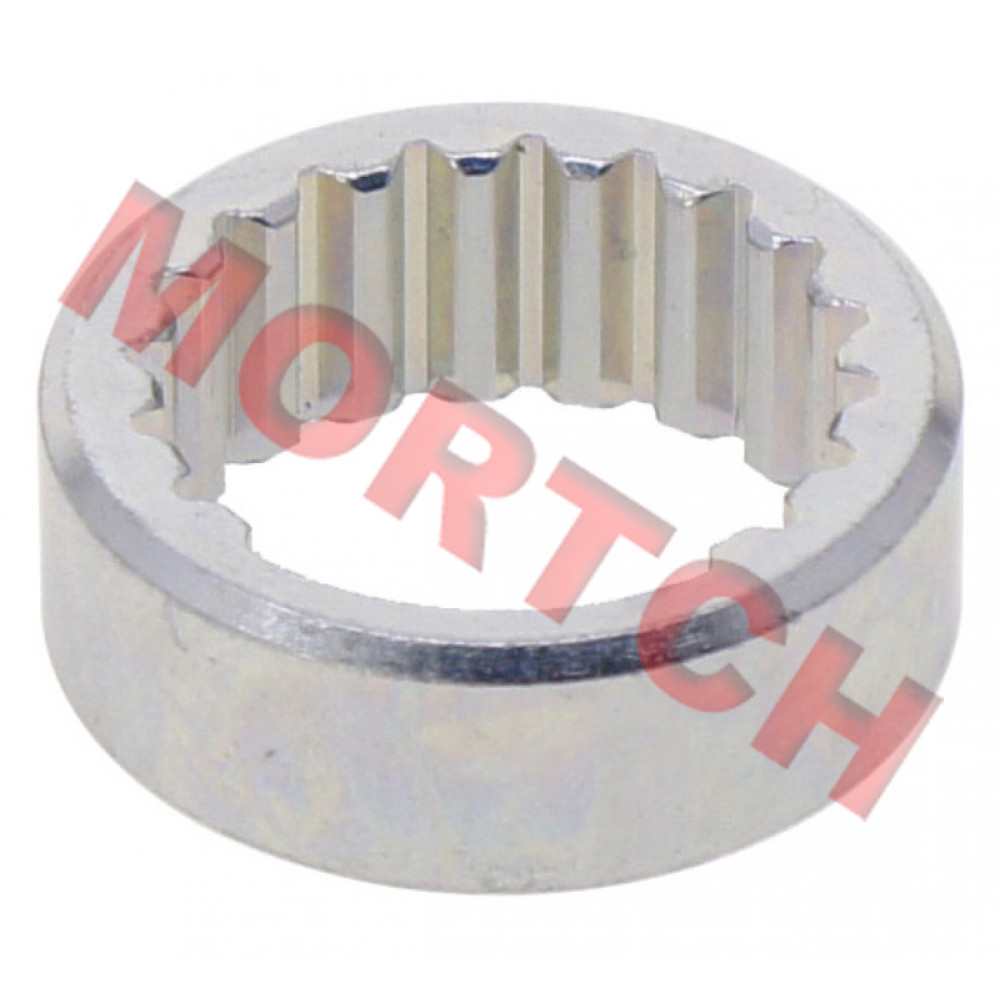

🔧 CFMoto Spline Sleeve
📦 Part Number: 9CR6-103003
⚙️ Spline Sleeve · Spline Hub · OEM Specification
📍 Installation Position: Drivetrain / Spline connection area
✅ Single unit · High-strength metal · Direct fit · Compatible with multiple CFMoto ATV models
This product is a CFMoto OEM specification Spline Sleeve, part number 9CR6-103003, sold as a single unit. This spline sleeve is a critical connecting component of the drivetrain, installed in spline connection areas to transmit torque and rotational motion. Manufactured from high-strength metal with precision machining, it ensures a perfect fit with the spline shaft for reliable and efficient power transfer.
Over time, the spline sleeve may suffer from wear, fatigue, or poor lubrication — leading to increased backlash, abnormal noise, or uneven power transmission. Timely replacement with an OEM-spec spline sleeve is essential to restore drivetrain precision and reliability.
✅ OEM Quality Assurance: Manufactured strictly to CFMoto original technical standards using high-strength metal. Spline parameters and dimensions are identical to genuine parts, ensuring a perfect replacement and reliable transmission performance.
This Spline Sleeve (part number 9CR6-103003, single unit) is compatible with the following CFMoto models:
- CF1000ATR · CForce 1000
- CF1000AU · CForce 1000 EPS Overland
- CF1000AU-F · CForce 1000 Overland
- CF1000AZ-2 · CForce 1000 Touring
- CF1000AZ-2A · CForce 1000 Overland
- CF1000AZ-3 · CForce 1000 EPS MUD
- CF400ATR-2L(T3a) · CForce 450L
- CF400ATR-2L(T3b) · CForce 450L
- CF400ATR-2S · CForce 450S
- CF400ATR-2S(T3a) · CForce 450S
- CF400ATR-2S(T3b) · CForce 450S
- CF400AU · CForce 400S/450S
- CF400AU-A · CForce 450S
- CF400AU-B · CForce 450L
- CF400AU-L · CForce 400L/450L
- CF400AU-LF · CForce 450L
- CF400AZ-3S · CForce 400 / CForce 450
- CF400AZ-7S · CForce C4
- CF500ATR-11L · GOES TERROX 500L
- CF500AU-6B · CForce 550
- CF500AU-6L · CForce 550
- CF500AU-7A · CForce 520S
- CF500AU-7C · CForce 520L
- CF500AU-7L · CForce 520L
- CF500AU-7LF · CForce 520L
- CF500AU-7S · CForce 520 S
- CF500AU-7SF · CForce 500S / CForce 520S
- CF500AZ-17S · CForce C5
- CF500AZ-9S · CForce 500S / CForce 520S
- CF600ATR-2L(T3b) · CForce 625 Touring
- CF600ATR-2S(T3b) · CForce 625
- CF600ATR-L(T3a) · CForce 600
- CF600ATR-L(T3b) · CForce 600
- CF600AU-3L · CForce 600 Touring / 625 Touring
- CF600AU-3LA · CForce 600 Touring / 625 Touring
- CF600AU-3LF · CForce 600 Touring / 625 Touring
- CF600AU-3S · CForce 600 / 625
- CF600AU-3SA · CForce 625 EPS
- CF600AU-3SF · CForce 625S EPS Touring
- CF600AU-L · CForce 600
- CF600AU-L(EU168) · CForce 600
- CF600AU-L(INTERNATIONAL) · CForce 600
- CF800-2 · Terralander 800 X8
- CF800ATR-3 · CForce 850XC
- CF800ATR-5 · CForce 850 X8 Touring
- CF800AU-2A · CForce 850XC
- CF800AU-2AF · CForce 800XC / CForce 850XC
- CF800AZ-3 · CForce 800 Touring / CForce 850 Touring
📌 Fitment Note: This spline sleeve fits the drivetrain spline connection areas of the listed CFMoto ATV models. Sold as a single unit. If your specific model is not listed, please contact us with your VIN for compatibility confirmation.
- ✅ OEM Original Specification: Manufactured strictly to CFMoto original technical standards; spline parameters and dimensions match genuine parts exactly.
- 🛡️ High-Strength Metal: Made from premium metal with excellent wear resistance and fatigue strength.
- 🔧 Precision Machined: Splines are precision-machined for perfect fit with the spline shaft.
- 💪 Reliable Transmission: Ensures smooth and efficient torque transfer with minimal backlash.
- 🔄 Direct Replacement: Directly replaces worn or damaged original spline sleeves.
• Unusual noise or vibration from the drivetrain.
• Excessive backlash in the spline connection — uneven power transmission.
• Visible wear, pitting, or deformation on the spline teeth (visual inspection).
• Spline sleeve found to be worn beyond service limits during maintenance.
If you experience any of these symptoms, inspect and replace the spline sleeve promptly.
1. Confirm the spline sleeve is the correct 9CR6-103003 matching the original.
2. Note the installation position and orientation before removal.
3. Clean the mounting surface and spline grooves.
4. Install the new sleeve, ensuring proper engagement with the spline shaft.
5. Verify spline engagement and check for excessive play.
Professional installation is recommended to ensure proper fitment.
- Please verify that this part fits your specific vehicle model and year. Many vehicles share similar names but use different components depending on year or market region.
- We strongly recommend cross-checking with your vehicle's owner's manual or contacting us for confirmation before placing your order.
- Product images, measurements, and descriptions are for reference only. Slight variations in color or appearance may occur due to manufacturing batches or photography lighting—functional specifications remain identical to the ordered part.
- Professional installation is mandatory. Mortch Motor assumes no liability for damages, injuries, or losses resulting from improper installation, misuse, unauthorized modification, or abnormal operation.
- All listed prices EXCLUDE shipping costs, import duties, taxes, and customs clearance fees. These charges (if applicable) are determined and collected by your local customs authority and are solely the buyer's responsibility.
- In case of return due to unpaid duties/taxes or refusal to clear customs, the buyer shall bear the original shipping cost, return shipping fees, and any associated administrative charges deducted from the refund.
