Driven Shaft Assy

CF Moto Driven Shaft Assy

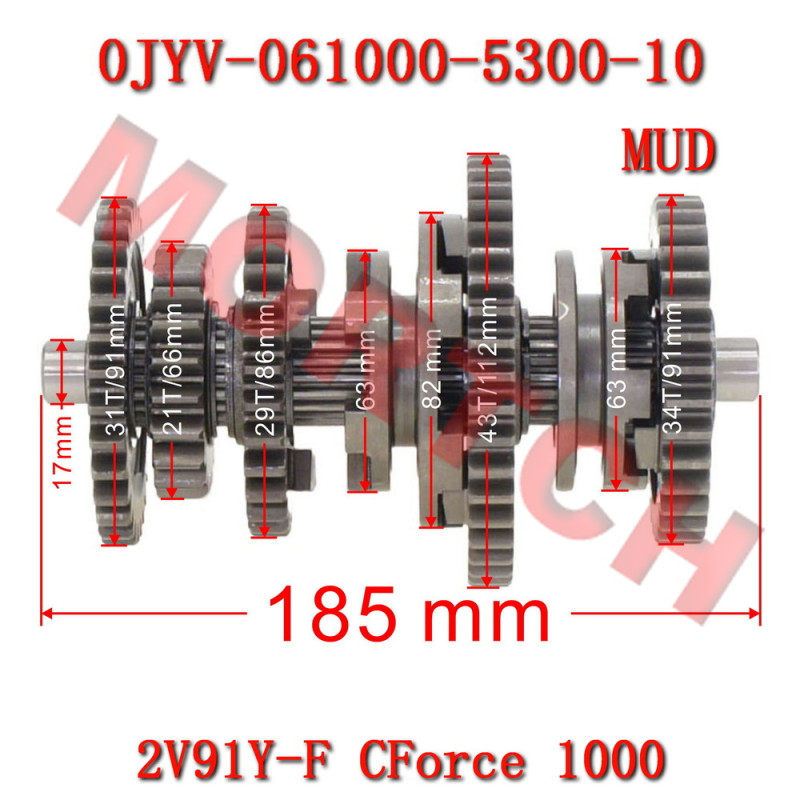

Part Number: 0JYV-061000-5300-10

Product Type: Transmission | Driven Shaft Assembly

Fitment: CFMoto 1000cc Series ATV (CForce 1000 TOURING / OVERLAND / MV)

OEM-specification driven shaft assembly. Designed for CFMoto 1000cc series ATV models, including CForce 1000 TOURING, OVERLAND, and MV, this is a core internal transmission component responsible for transferring power from the CVT to the drive wheels and enabling high/low range and reverse gear shifting.

This product is a genuine CF Moto driven shaft assembly, part number 0JYV-061000-5300-10. This assembly is a critical internal component of the transmission, integrating the driven shaft, high/low range driven gears, reverse gear, sliding bushings, output gear, parking gear, and other essential parts. It receives power from the CVT driven pulley, facilitates gear changes (high, low, reverse) through its internal mechanism, and transmits power to the final drive. Supplied as a complete unit with all components listed below, it ensures precise assembly and reliability. Suitable for transmission overhaul or replacement on CFMoto 1000cc ATV models, specifically for those built on the 2V91Y-F platform.

Kit Includes the Following Components:

Part Number	Description	Qty
30801-02905	Circlips for Shaft	4
0JWV-061009-3000	Parking Gear	1
0JWV-061006-3000	Driven Shaft Output Gear	1
0800-061007	Circlip 29	4
0JWV-061008-3000	Driven Gear, Reverse Gear	1
30402-02402	Needle Bearing	3
0JWV-061007-3000	Low Gear Sliding Bushing	1
0JWV-061001-3000	Driven Shaft	1
0JWV-061101-3000	Driven Gear, Low Range	1
0JWV-061004-3000	Sliding Bushing, High Range	1
0800-061003	Washer	1
0JWV-061005-3000	Driven Gear, High Range	1
0800-061002	Washer	1

• OEM Match: Part number 0JYV-061000-5300-10 corresponds exactly with the CFMoto official parts system, ensuring direct replacement.
• Complete Assembly: Includes the driven shaft and all related gears, bushings, bearings, and circlips as a single unit, eliminating the need to source individual parts.
• Precision Manufacturing: Gears are made from high-strength alloy steel with precision machining and heat treatment for excellent wear resistance and fatigue strength.
• Smooth Shifting: Precise engagement between sliding bushings and gears ensures smooth and reliable shifting between high, low, and reverse ranges.
• High Load Capacity: The shaft and gears are designed to withstand the high torque output of the engine, ensuring stable power transmission.
• Essential for Rebuilds: Must be inspected or replaced during transmission overhauls or when experiencing noise, gear slipping, or difficult shifting.

✅ Fault Indications: Common signs of a worn driven shaft or related gears include:
• Unusual noises from the transmission area (gear whine, bearing noise);
• Difficulty shifting gears or gears not engaging;
• Transmission slipping out of gear while driving;
• Abnormal power delivery or vibration in specific gears;
• Transmission fluid leaks.
If these symptoms occur, inspect the transmission internally immediately.

✅ Installation Tip: Installing this assembly is a core part of a transmission overhaul. Strictly follow the service manual procedures, ensure all circlips are properly seated, and check gear clearances. Professional installation by an experienced technician is mandatory.

⚠️ Important Notice: This product is a CF Moto driven shaft assembly, part number 0JYV-061000-5300-10. It is applicable for the 1000cc ATV models (2V91Y-F platform) listed above. Minor variations may exist between different model years or production batches. If your specific model is not listed, please contact our customer service with your VIN for compatibility verification. Images are for reference only; the actual product may vary due to improvements.
