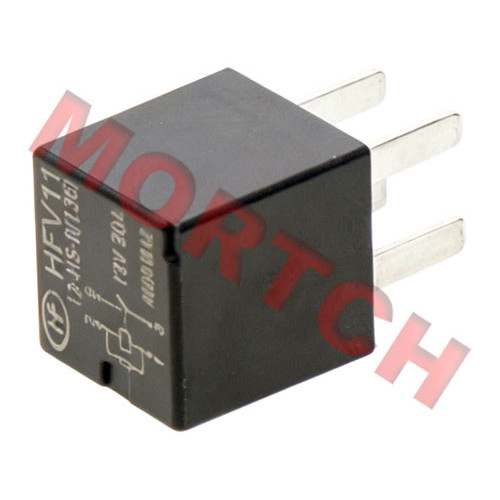

Auxiliary Relay

Brand: Mortch Motor
Product Code: MICFCV-150525-2000-M1

Product Viewed: 2

Availability: In Stock

Weight: 0.01kg

0 reviews / Write a review

US$2.80

Shipping To：

More Quotes

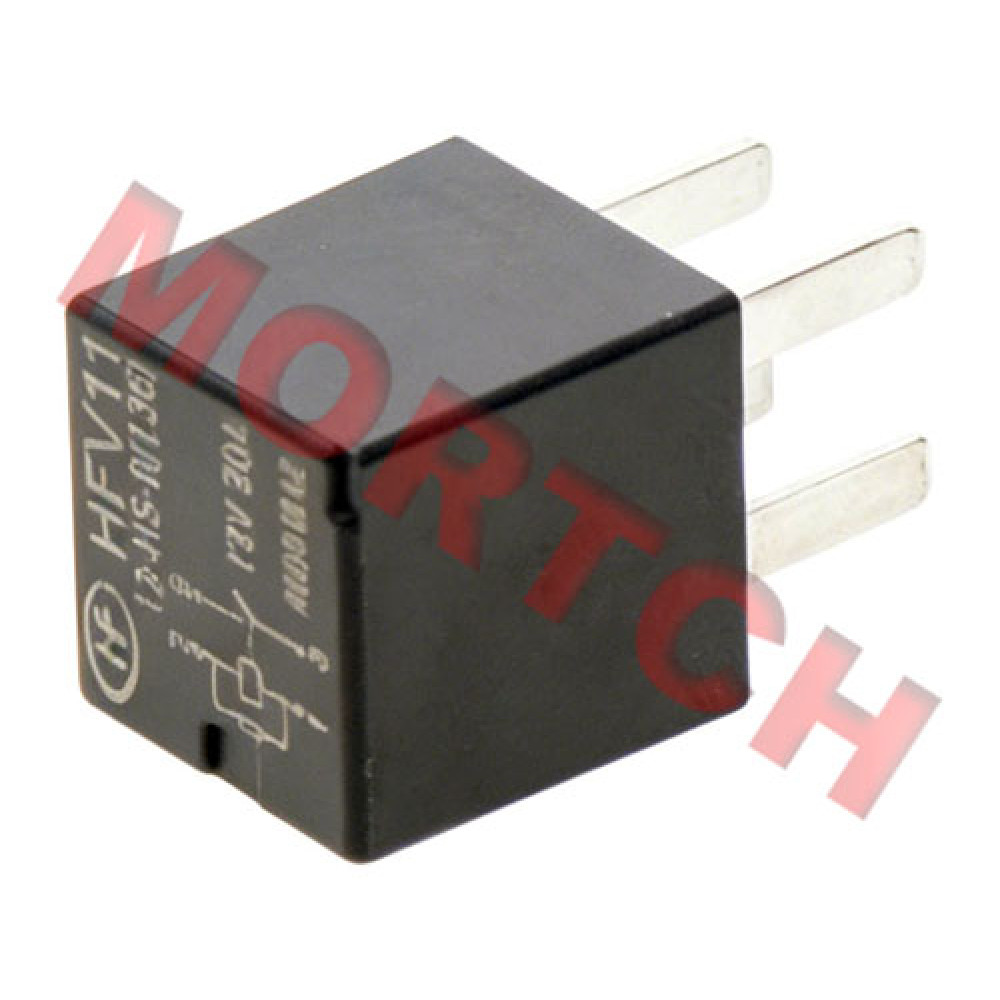

🔧 CFMoto Auxiliary Relay

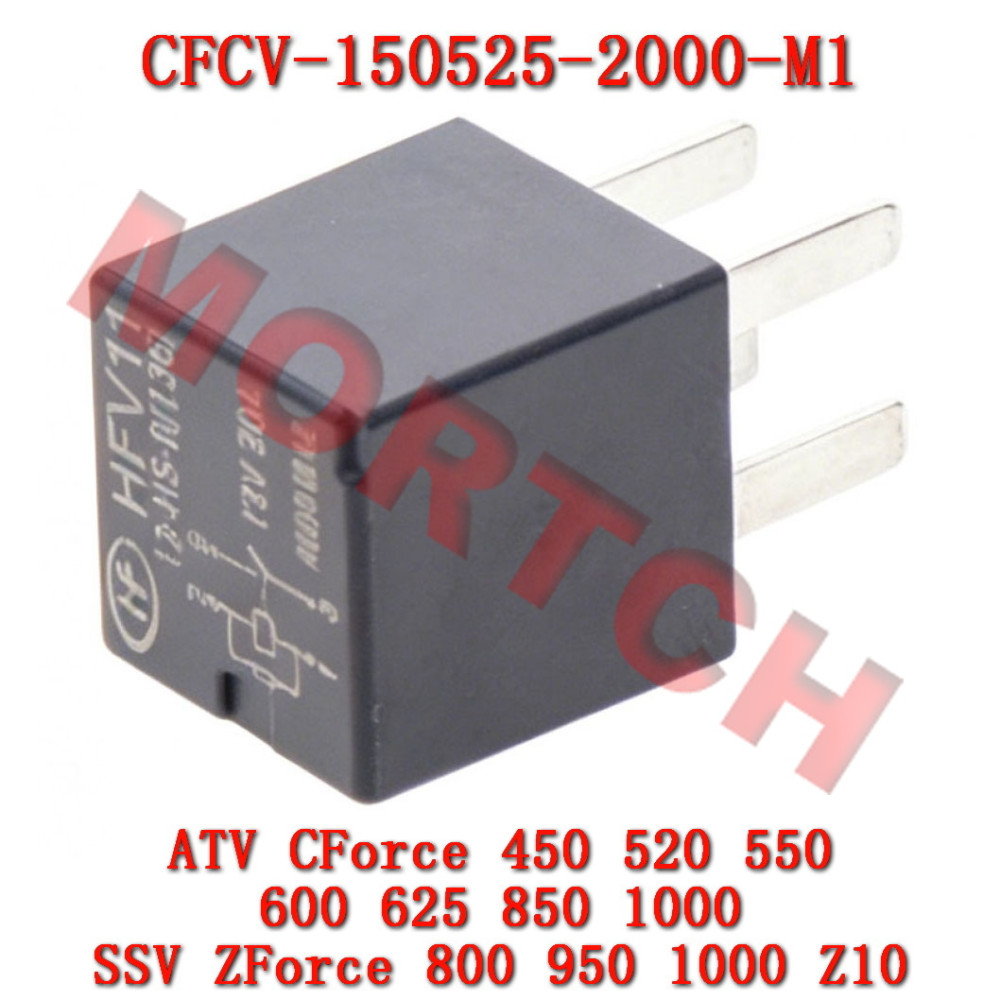

📦 Part Number: CFCV-150525-2000-M1

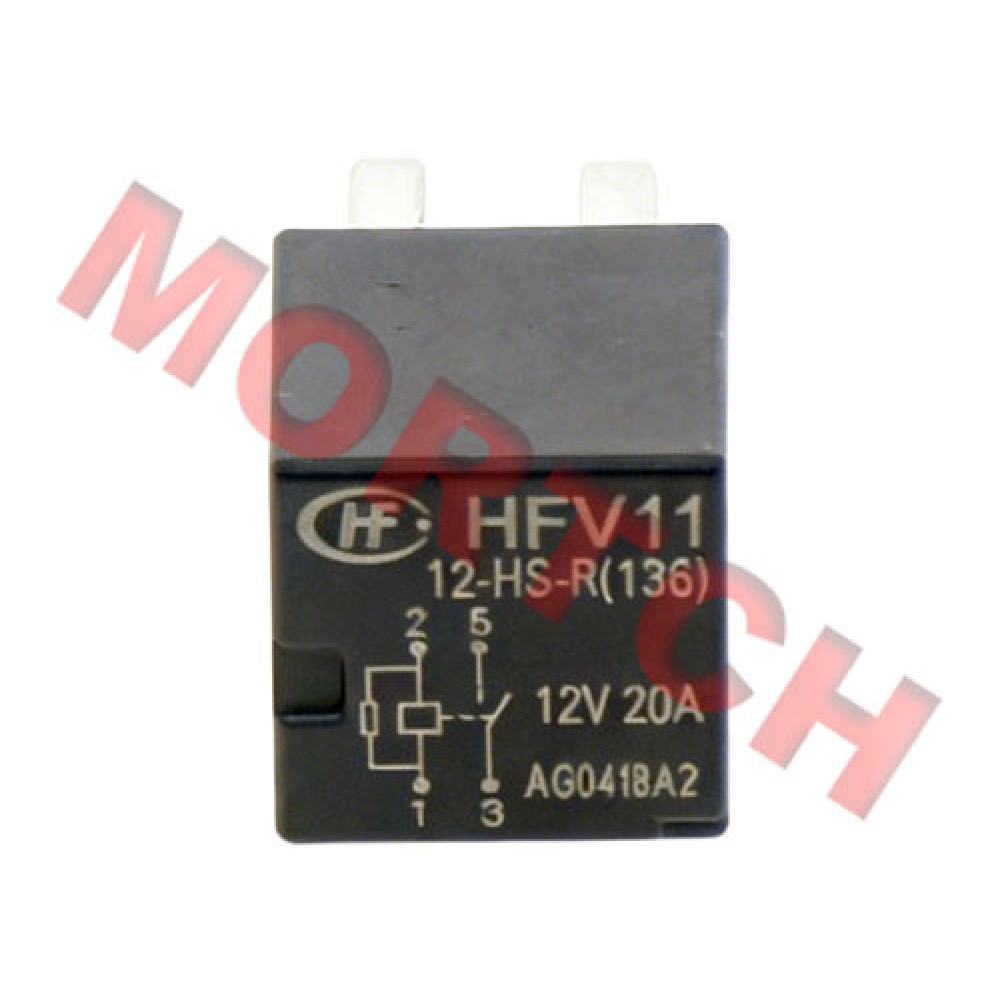

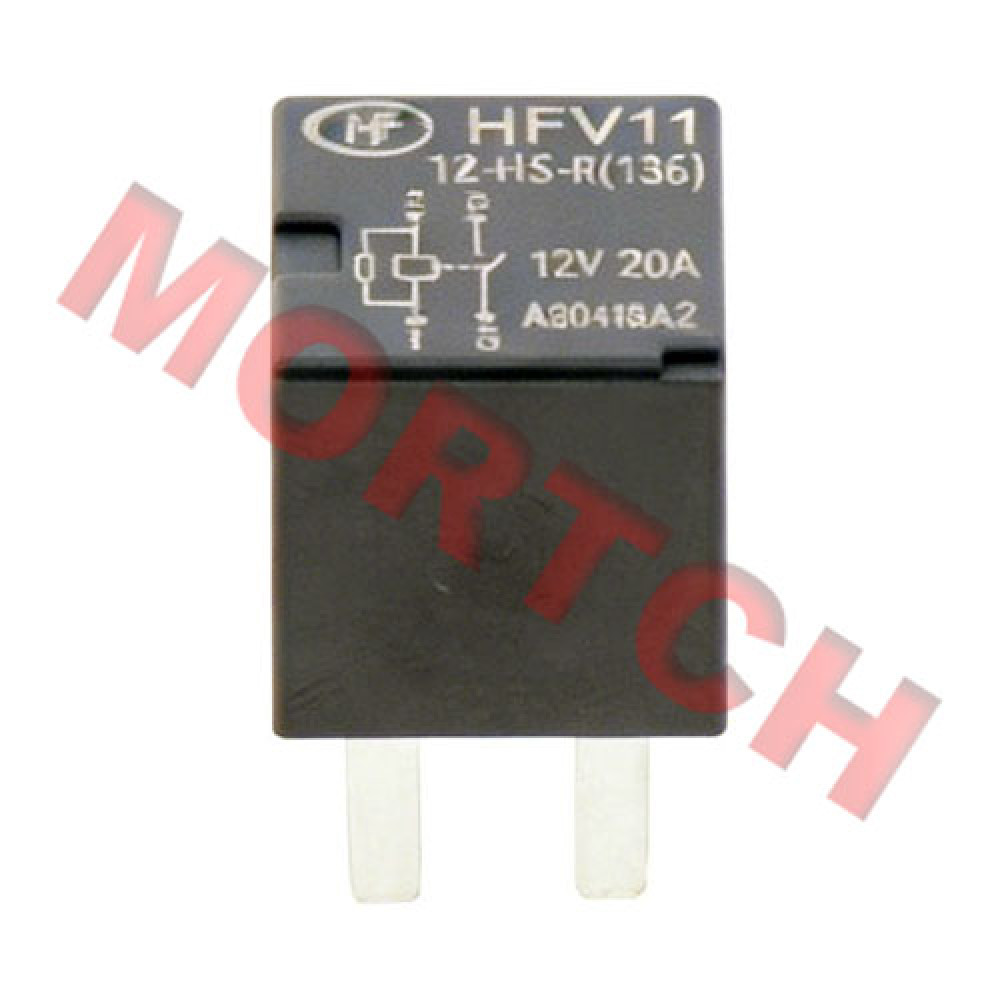

⚡ Relay Model: HFV11/12-HS-R(136) · OEM Specification

📍 Installation Position: Fuse/Relay Box · Auxiliary Electrical System

✅ OEM Quality · Plug and Play · Fits Multiple CFMoto ATV/SSV/UTV/Motorcycles

📋 Product Overview

This product is a CFMoto OEM-spec auxiliary relay, part number CFCV-150525-2000-M1, relay model HFV11/12-HS-R(136). This relay is a critical control component in the vehicle's electrical system, used to control various auxiliary electrical devices such as lights, horn, radiator fan, heating systems, etc. Manufactured with high-quality electromagnetic coils and contact materials, it offers fast response, long service life, and stable operation.

Over time, relays may experience contact burning, coil failure, or sticking, leading to malfunction of related electrical devices. Timely replacement of a faulty relay is essential to restore vehicle electrical functions.

✅ Genuine Quality Assurance: Manufactured strictly to CFMoto original technical standards. Pin configuration and mounting dimensions are identical to the original part for a perfect replacement.

📐 Specifications

🔖 CFMoto Part Number: CFCV-150525-2000-M1

🏷️ Relay Model: HFV11/12-HS-R(136)

📏 Coil Voltage: DC 12V

📍 Installation Position: Fuse/Relay Box

🔧 Function: Auxiliary Device Control · Switch ON/OFF

⚙️ Features: Plug and Play · High Reliability · Long Life

🚗 Compatible Models (CFMoto ATV / SSV / UTV / Motorcycle)

This auxiliary relay (CFCV-150525-2000-M1 / HFV11/12-HS-R(136)) fits the following CFMoto models:

🏍️ CForce 1000 Series (ATV)

2024-2026 CF1000ATR-2 · CForce 1000 TOURING
2025-2026 CF1000ATR-2A · CForce 1000 OVERLAND
2025-2026 CF1000ATR-3 · CForce 1000 MV
2025-2026 CF1000ATR-3L · CForce 1000
2026 CF1000ATR-4L · GOES TERROX 1000ATR EPS
2025-2026 CF1000AU-2 · CForce 1000 TOURING
2026 CF1000AU-4L · CForce 1000

🏍️ CForce 400 / 450 Series (ATV)

2023-2026 CF400ATR-3L(T3b) · CForce 450 L
2024-2025 CF400AU-3L · CForce 450L
2025-2026 CF400AU-3LH · CForce 450L
2025-2026 CF400AZ-3L · CForce 400 TOURING / CForce 450 L

🏍️ CForce 500 / 520 Series (ATV)

2026 CF500ATR-15L · GOES TERROX 550L T3b
2026 CF500ATR-17L · GOES TERROX 500L EPS T3b
2025 CF500ATR-9L(T3a) · CForce 520 L
2024-2026 CF500ATR-9L(T3b) · CForce 520 L
2024-2025 CF500AU-9L · CForce 520 L
2025-2026 CF500AU-9LH · CForce 520 L

🏍️ CForce 600 / 625 Series (ATV)

2024-2026 CF600ATR-2LC · CForce 625 Touring
2025-2026 CF600ATR-2SC · CForce 625
2023-2025 CF600AU-3LF · CForce 600 Touring / 625 Touring
2025-2026 CF600AU-3LH · CForce 600 Touring / 625 Touring

🏍️ CForce 800 / 850 Series (ATV)

2024-2026 CF800ATR-5 · CForce 850 TOURING
2025-2026 CF800AU-3 · CForce 850 TOURING

🏎️ SSV Series (ZForce / Z10 / Gladiator)

2026 CF1000STR(T1b)
2024-2026 CF1000STR-3L · ZForce 950 SPORT-4
2026 CF1000STR-L · Gladiator Z10 TURBO XL T1B
2025 CF1000SZ · Z10
2025 CF1000SZ-L · Z10-4
2023-2026 CF1000UTR-6(T1b) · ZForce 1000
2025-2026 CF800SU-3 · ZForce 800 SPORT

🚜 UTV Series (UForce)

2025-2026 CF1000UTR-8 · UForce 1000 PRO(T1b)
2025-2026 CF1000UTR-8K · UForce 1000 PRO MAX(T1b)
2025 CF1000UTR-8L · UForce 1000 PRO MAX(T1b)

🏍️ Motorcycle

2023-2024 CF700-2C(EU5)

📌 Fitment Note: This auxiliary relay fits the CFMoto ATV, SSV, UTV, and motorcycle models listed above. Relays are standard components and are interchangeable across the same type. If your specific model is not listed, please contact customer service with your VIN for confirmation.

⚙️ Product Features

✅ OEM Specification: Manufactured strictly to CFMoto original technical standards; pin arrangement and dimensions match the original part.
⚡ Standard 12V: Compatible with vehicle electrical system, plug and play.
🔌 Standard Pin Configuration: Uses standard relay pin layout for direct replacement.
💪 High Reliability: Premium contact material for high load capacity and long service life.
🔧 Direct Replacement: Directly replaces burned, stuck, or failed original relays.
⚙️ Fast Response: Electromagnetic coil provides quick response to ensure proper operation of electrical devices.

✅ Signs Your Relay Needs Replacement:
• Related electrical device (lights, horn, fan, etc.) does not work or works intermittently.
• Unusual noise or abnormal "click" sound from the relay.
• Relay housing is hot to the touch, discolored, or has a burning smell.
• Coil resistance measured with a multimeter is abnormal (open or short circuit).
• Function is restored when swapped with a known working relay.
If any of these symptoms occur, inspect and replace the relay promptly.

✅ Installation Tips:
1. Ensure the vehicle is off and the key is removed before installation.
2. Locate the fuse/relay box and identify the faulty relay using the diagram or service manual.
3. Pull the old relay straight out (use a relay puller tool if available).
4. Insert the new relay into the socket in the correct orientation (ensure it is fully seated).
5. Start the vehicle and test the related electrical function to confirm normal operation.
6. If the issue persists, check related wiring or other relays.
Professional diagnosis and installation are recommended.

⚠️ Important Notice: This product is a CFMoto auxiliary relay, CFMoto part number CFCV-150525-2000-M1, relay model HFV11/12-HS-R(136). Fits the CFMoto ATV, SSV, UTV, and motorcycle models listed above. Minor differences may exist between production batches. If your specific model is not listed, please contact customer service with your VIN for compatibility confirmation. Images are for reference only; actual product may vary.
